Articulating Borescope Buying Guide

The best articulating borescope should fit the access opening, reach the inspection target, steer predictably, focus at the required distance, and produce an image clear enough to support a decision. Automotive mechanics may need to inspect cylinder walls, valves, pistons, turbochargers, or gearboxes, while HVAC and property work may involve coils, ducts, drain lines, pipes, and wall cavities. Compare probe diameter and length, articulation range, camera direction, depth of field, screen quality, illumination, environmental resistance, recording, battery life, and replacement support rather than relying only on a 1080P label.

Articulating Borescope vs Standard Inspection Camera

A standard inspection camera bends with its cable but usually points wherever the probe naturally faces. An articulating borescope adds mechanical steering at the distal tip, letting the operator turn toward a valve, cylinder wall, weld, obstruction, or side passage after insertion. This control is valuable in confined systems where rotating the entire cable is unreliable. Articulation also introduces moving parts that should be operated gently, kept within the stated bend range, and returned to a neutral position before withdrawal when the manual instructs it.

Single-Lens and Dual-Lens Articulating Borescopes

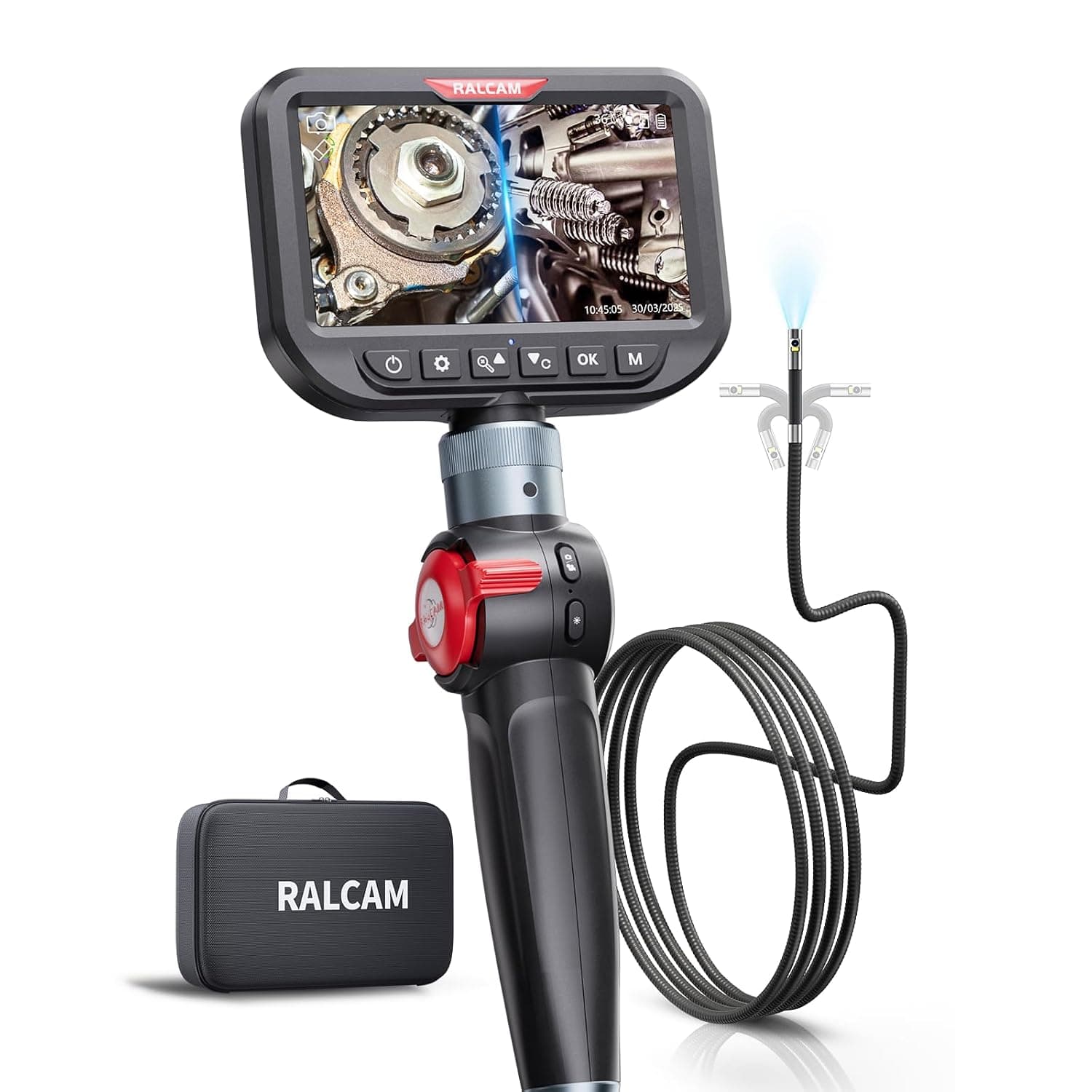

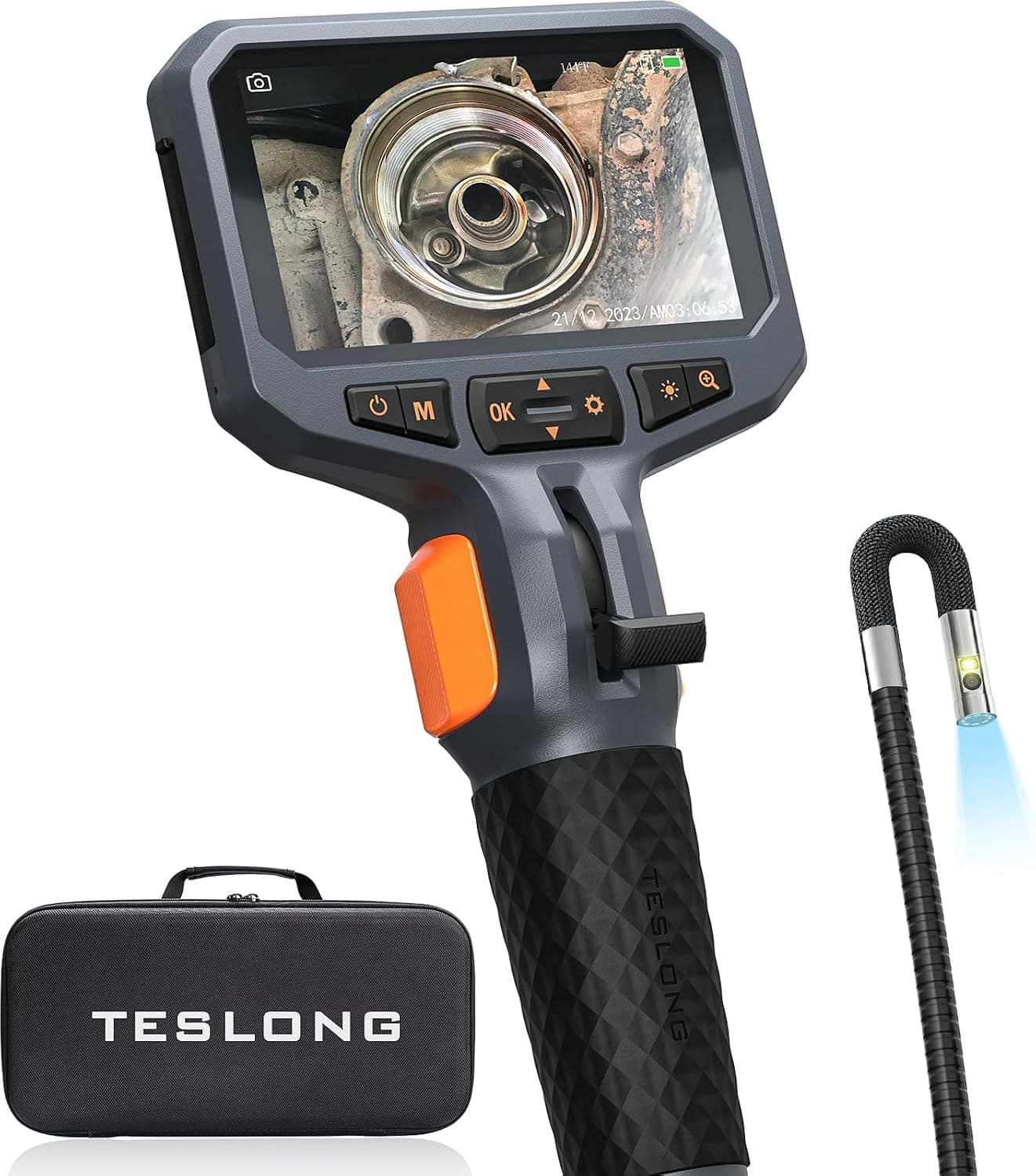

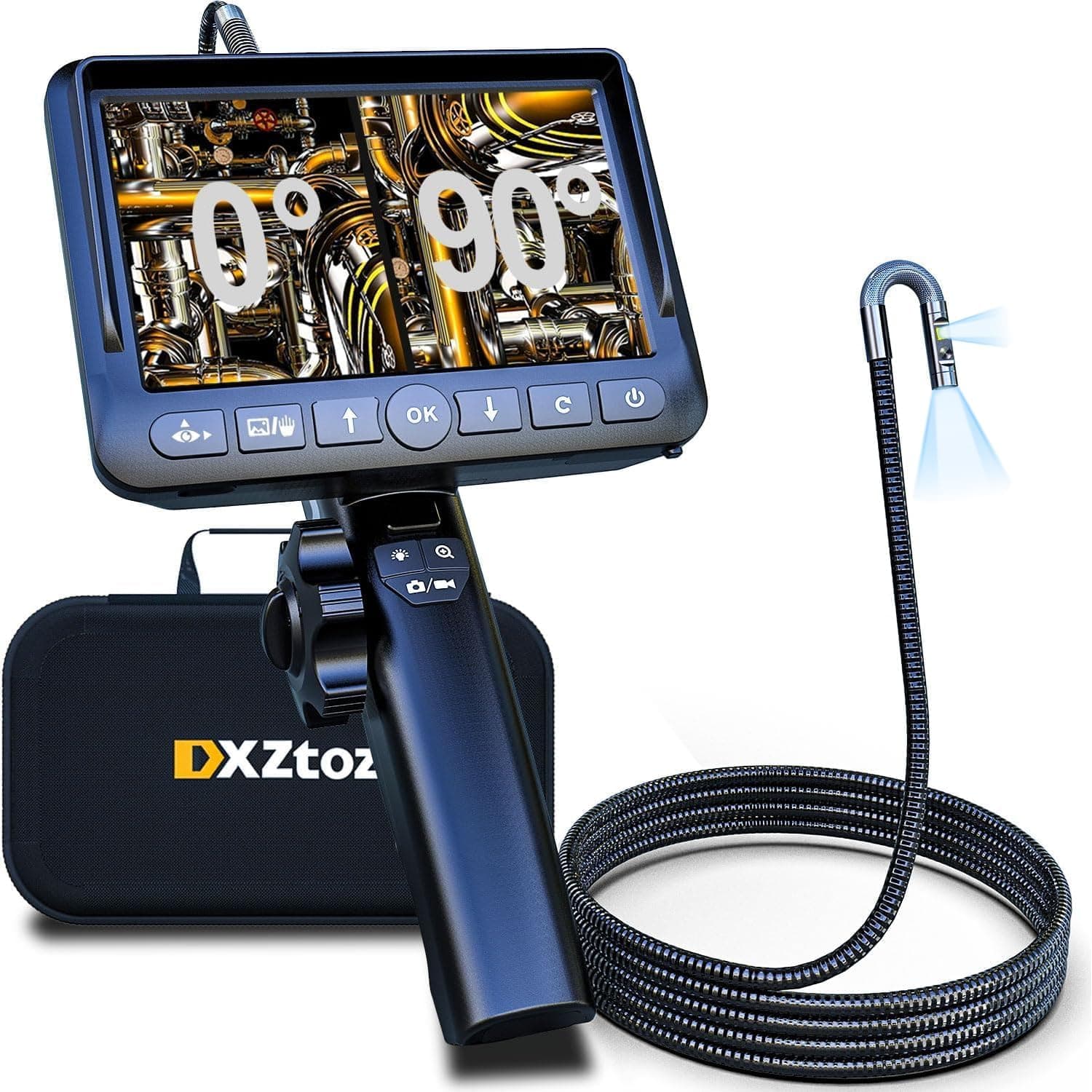

A single forward camera provides the most direct view while advancing the probe and can offer higher resolution at a given price. A dual-lens borescope adds a side-facing camera, allowing the operator to inspect a wall, pipe surface, or cylinder bore without sharply bending or retracting the probe. Check the resolution and focal range of both lenses because the secondary camera may differ from the main camera. Switching lenses is useful, but it does not create a simultaneous three-dimensional view or measure defect depth.

Probe Diameter, Cable Length, and Access

Measure the smallest opening and the full route before choosing an endoscope inspection camera. A 6.5mm probe enters spaces that an 8.5mm camera cannot, but connector shoulders, articulation joints, hooks, and mirrors may be wider than the lens housing. A five-foot semi-rigid cable is manageable for engine and wall inspection because it can hold a curve, yet excessive cable can become difficult to push through tight bends. Never force an articulated head past an obstruction; probe damage or a detached accessory can turn an inspection into a repair.

Camera Resolution, Screen Size, and Focus Distance

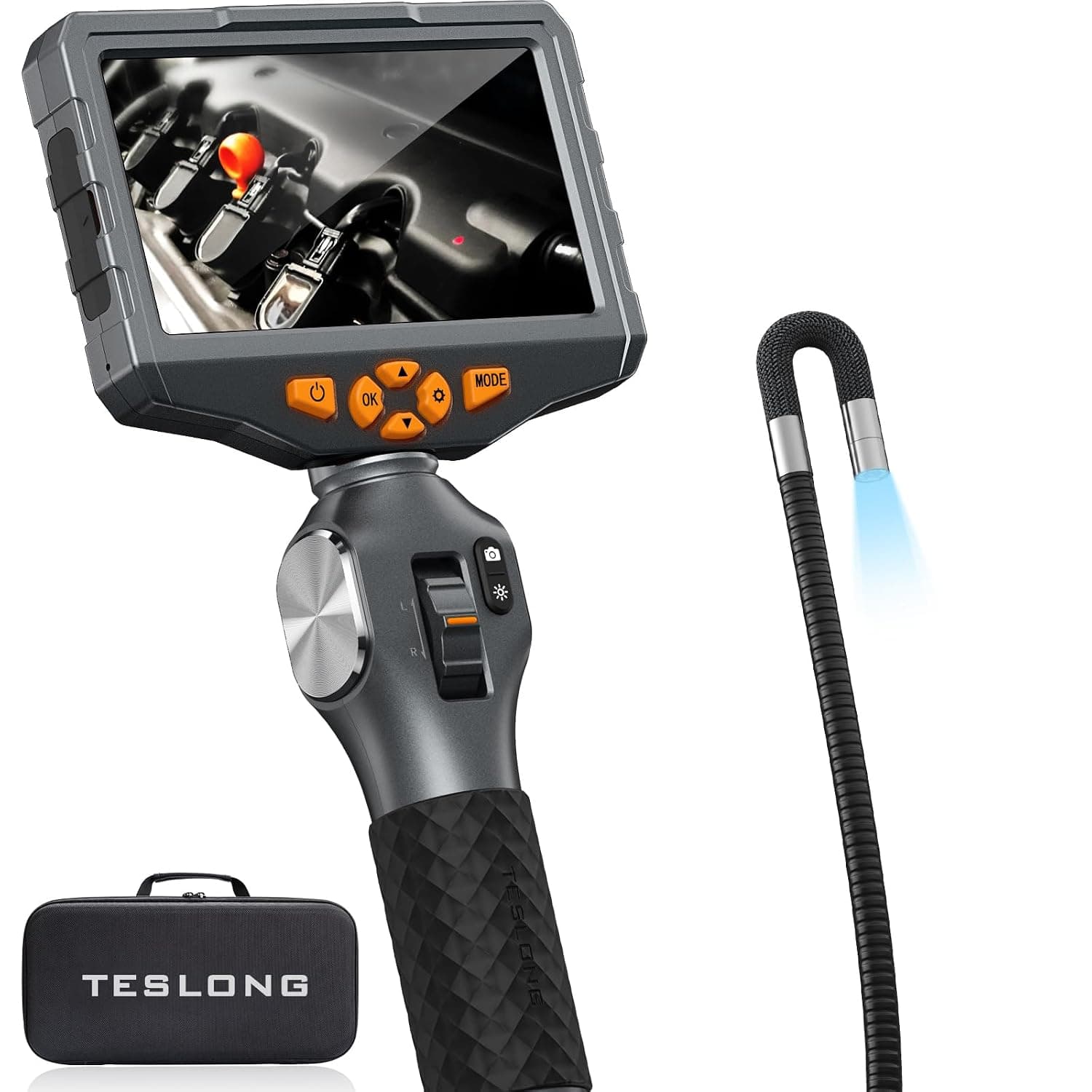

Resolution claims describe recorded or displayed pixels but do not guarantee useful detail. Lens quality, sensor size, compression, lighting, screen resolution, motion, and correct focus distance all influence the image. A five-inch IPS screen can make defects easier to review than a smaller monitor, while digital zoom only enlarges existing pixels and cannot recover missing detail. Confirm the specified depth of field for close engine work, then practice holding the probe at that distance before interpreting deposits, scoring, corrosion, cracks, or blockages.

LED Lighting for Engine, Pipe, and HVAC Inspection

An industrial borescope needs adjustable lighting because dark cavities require illumination while shiny metal, oil, and wet pipe walls can reflect too much light into the lens. Start at low brightness and increase it until surface texture becomes visible without blown highlights. Dual-lens models may place a separate LED near the side camera. Lighting reveals only what the camera can see; clean the lens before use and distinguish reflections, fluid films, and debris from actual component damage.

IP67 Waterproof Borescope Limits

An IP67 rating commonly applies to the camera probe and cable, not automatically to the handheld screen, controls, connectors, or open ports. It also does not prove resistance to fuel, solvents, hot oil, acids, pressurized fluid, or every industrial chemical. Verify the exact model manual before wet inspection, isolate and cool equipment, and never insert a borescope into an energized or moving system unless the equipment and procedure are specifically designed for it. Clean and dry the probe after use to protect seals and articulation components.

Recording Inspection Photos and Videos

Photo and video recording lets mechanics document conditions before disassembly, compare repeated inspections, and show findings to a customer or colleague. Include an external reference for location and scale because a close-up borescope image can be difficult to orient later. Record the machine, cylinder, pipe section, probe direction, and date in the file notes. Wireless sharing can support a second viewer, but secure the connection and follow workplace privacy rules when images may contain customer property or identifying information.

Battery Life, Accessories, and Field Durability

Stated runtime depends on screen brightness, LED intensity, recording, wireless use, temperature, and battery age. Charge the articulating inspection camera before critical work and confirm whether it can operate while charging. Hooks and magnets can retrieve small objects, while mirrors change viewing direction on single-lens probes, but every accessory increases tip diameter and can loosen. Attach accessories exactly as directed, inspect them before insertion, and use the carrying case to protect the lens, articulation mechanism, screen, and cable during transport.
